Tiny Spectrum Analyser 600MHz to 2600 MHz

Postby F6DZP » Wed 19 Jun 2013 06:50

Hello,

I'm working on a new tool : Spectrum Analyser that works from 600 MHz to 2600 MHz using a 48 euros PCI card : TT S2-1600

It 's just the beginning of my development, so many things remain to do.
But it can show that it works.

There are some limitations:
- Bandwidth : lowest value is 10 MHZ
- Scan speed : for a full scan (600 MHz to 2600 MHZ) it takes about 6 sec.

But it can help us for finding carrier harmonics, look at noise on a band ..

Here I show some screen captures of one of first beta version ( there is my DATV signal on 1255 MHz)

full scan Max Gain:


Tiny Spectrum Analyser beta.jpg
Tiny Spectrum Analyser beta.jpg (179.51 KiB) Viewed 29213 times

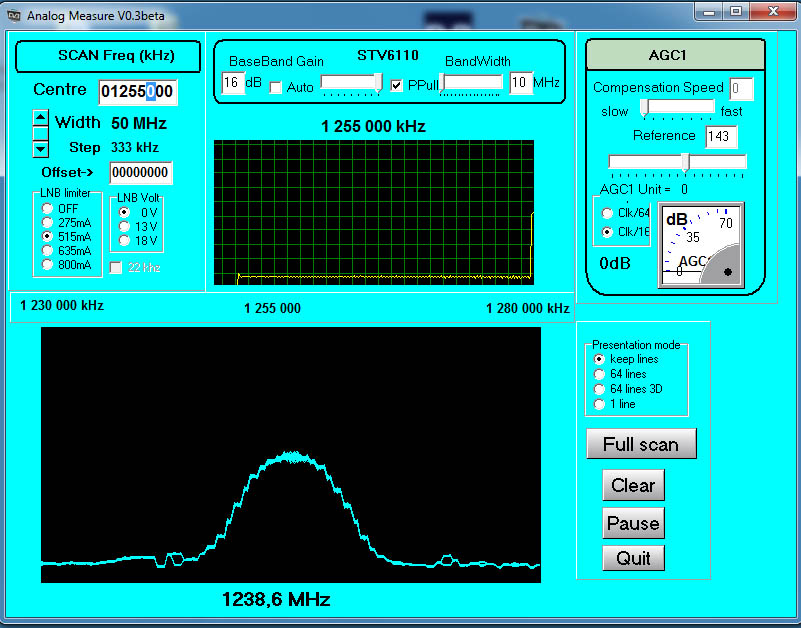

50 MHz scan - 1255MHz centered - BBgain max


Tiny Spectrum Analyser beta 1255MHz width 50 MHz.jpg
Tiny Spectrum Analyser beta 1255MHz width 50 MHz.jpg (177.83 KiB) Viewed 29213 times

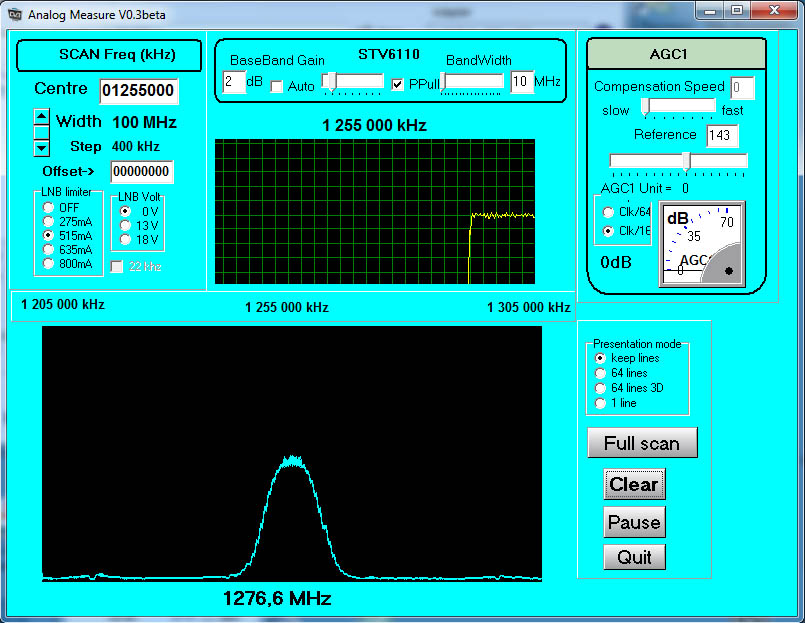

100 MHz scan - 1255MHz centered - BBgain 2 dB


Tiny Spectrum Analyser beta 1255MHz width 100 MHz BBgain 2dB.jpg
Tiny Spectrum Analyser beta 1255MHz width 100 MHz BBgain 2dB.jpg (171.28 KiB) Viewed 29213 times


I will put here here Free for download after having added some new functionalities.

Perhaps you can give me some ideas. Thanks.

Jean Pierre F6DZP
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: Tiny Spectrum Analyser 600MHz to 2600 MHz

Postby F6DZP » Thu 30 Jan 2014 18:20

F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: Tiny Spectrum Analyser 600MHz to 2600 MHz

Postby it9sak » Mon 20 Oct 2014 19:13

Hello , I'm nunzio it9sak . I would like know if is possible use the board TT1600 like dvb-t costellation analyzer of a signal QAM16 @ 600Mhz dvb-t not dvb-s .

Or if exist a dedicate software which use RTL2832 SDR usb-key or internal MEDION DVB-T receiver with the chipset SAA7131

Thanks for your reply
it9sak

Posts: 1
Joined: 26 Aug 2013

Re: Tiny Spectrum Analyser 600MHz to 2600 MHz

Postby F6DZP » Tue 21 Oct 2014 17:15

TT S2-1600 is only for DVB-S, so you will see only QPSK constellations.

I don't know which software can do that for DVB-T with an SDR and if it exists.

Jean Pierre F6DZP
F6DZP

Posts: 1129
Joined: 24 Dec 2010
