[DG8KD]

Hi,

Also got my MT Pro kit (not really good packed ...some pins are bend...not fully assembled yet).
I also ordered the blue box that JP has used.
Now I am looking for a good display like the one it is shown in the blue box.

Any hints / recommendations?

Thanks in advance

73 Rainer

[M5TXJ]

Hi Rainer,

I too have got the same box as Jean -Pierre and have 2 x 1.8" Digole tft displays ordered which will be connected to the master and aux usb channels. I have a 1.3" Digole on my Minitiouner V2 and am very happy with it.

73 Dave.

[F6DZP]

Hello,

For the future , with 2 stations received at same time , the best I like is the 2.6" TFT IPS Digole. as I can display info for 2 stations if the screen is 320x240.


http://www.digole.com/index.php?categoryID=208

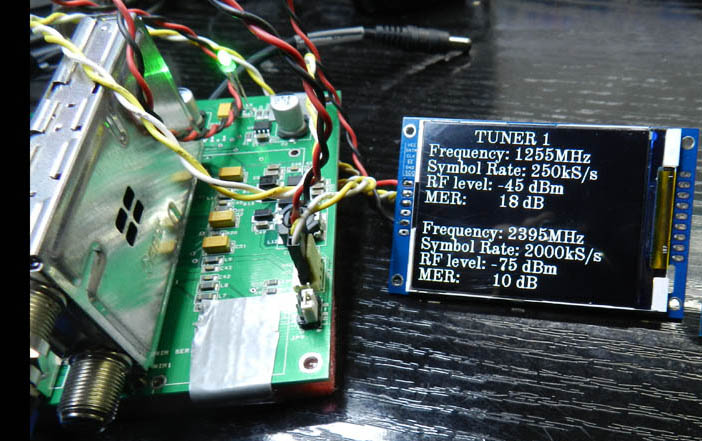

test LCD digole 2.6 inch__.jpg (103.67 KiB) Viewed 43403 times

Yes I like this blue metal box:

https://fr.aliexpress.com/item/Bleu-Bo-tier-M-tallique-Cas-De-Projet-Bo-te-de-Jonction-DIY-6-7-x/32906904870.html

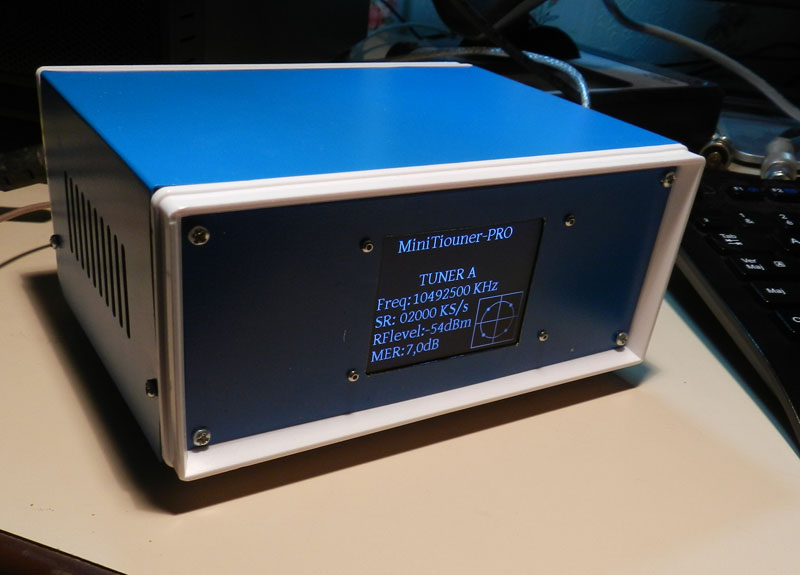

Boitier bleu avec MiniTiounerPro et LCD vue avant_.jpg (78.81 KiB) Viewed 43403 times

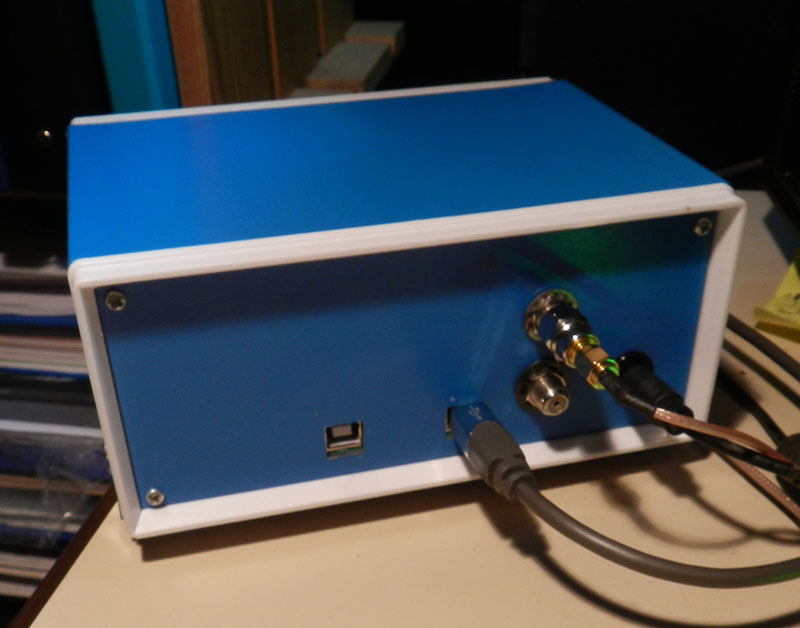

Boitier bleu avec MiniTiounerPro et LCD vue arrière_.jpg (78.93 KiB) Viewed 43402 times

Jean-Pierre F6DZP

[M5TXJ]

Jean-Pierre,
I have 2 of the 1.8" Digole displays on order and was planning to connect one to each of the master and aux I2C connectors, would I be better with a single 2.6" display?
73 Dave.

[f6fgd]

Bonjour
pour f6dzp

Quel est le modèle d'écran Digole Serial Display que vous avez monté
Merci
73 F6fgd

[MrSat]

I saw this link in the recommondation

http://www.digole.com/index.php?categoryID=208

This leads to a lot of different Digole displays and also a lot of 2.6" versions.

Could somebody add a direct link to perfect display for a minitiouner Pro V2? An Ebay link is also good because the shippingcosts are much cheaper then with Digole (shipping ~49 euro!!)

[F6DZP]

Hello,

Yes, now price with shipping is better via Ebay.
you can buy it using this Ebay Title:

2.6" Serial:UART/I2C/SPI IPS Super TFT LCD 320x240+16M Flash Arduino/Rasp PI CN


today the Flash memory is not used by Minitioune so you can also buy:

2.6" Serial:UART/I2C/SPI IPS Super TFT 320x240 Display Module for Arduino

verify seller is dig-ole

Jean-Pierre F6DZP

[MrSat]

All needed products received from China

Do you have a connection diagram for connecting this Digiole display to the MiniTiouner Pro V2?

A connection diagram of the Minitiouner Pro V2 would also be needed. I searched maybe on the wrong places in this forum but I couldn't find it.

[F1CHF]

bonjour
pour l'ecran c'est celui la ?
https://www.ebay.fr/itm/2-6-Serial-UART ... SwuFZcucTJ

et en effet pour les branchements, elle est ou l'info ?
merci
le CHF

[F6DZP]

MiniTiounerPro schematic is here :http://www.vivadatv.org/viewtopic.php?f=82&t=409&start=30
MiniTiounerPro V2 schematic is here :http://www.vivadatv.org/viewtopic.php?f=82&t=648

on sheet "2 of 5", you can see JP3: "I2C NIM"
on this connector you have 4 wires : SDA(=data), SCL(=clock), 3.3v and Ground
on the Digole LCD you have 4 pins to use SDA, SCK or SCL, VCC and Ground

Jean-Pierre F6DZP
