MiniTiounerPro V2

Postby F6DZP » Thu 25 Apr 2019 08:04

Hello,

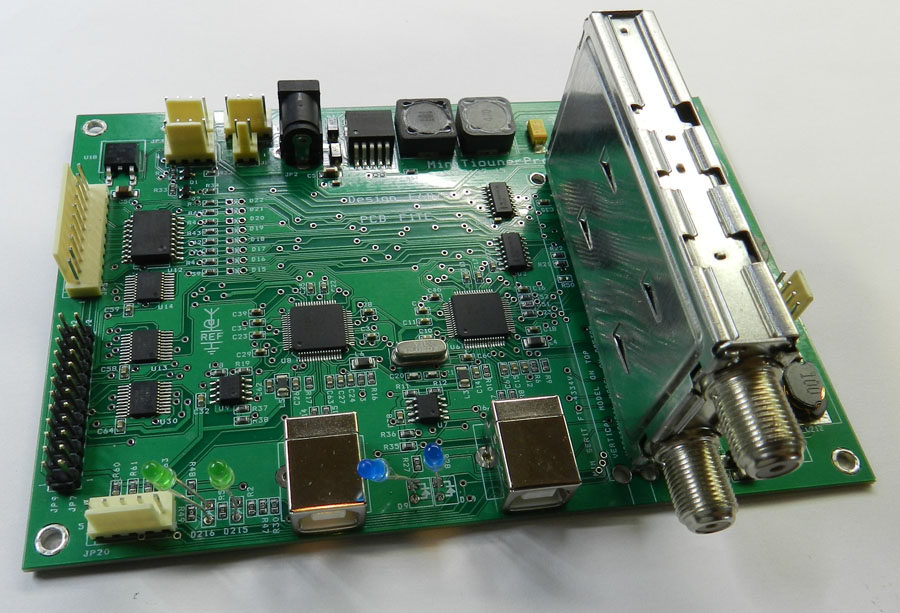

In 2 weeks we will have the MiniTiounerPro V2.

Many features can be found on this receiver:
- ready for receiving 2 stations at same time (useful for Duplex on Oscar-100) using next Software Dualtioune.
- 2 x RT5047 that produce 13v or 18v (400mA protected) for your LNA or LNB, one separate voltage for each different F-plug
- the MinitiounerPro has a design that allows the lowest I2C noise , Minitioune refresh rate can be 100ms (180 ms with a very slow processor like the Atom processor in my Pluto or Chuwi Tablet)
- 2 leds indicating TS1 and TS2
- 2 leds indicating LNB A/B voltage
- allows the use of LCD or Oled display
- TS1 and TS2 parallel output => we can use for developing IP interface or direct transmission to a modulator or ...
- 4 GPIO input/output
- 8 output ( with 8 leds) to drive relays, preamplifier ... depending the RF band you are using
...
The MiniTiounerPro V2 is ready for all future developments.

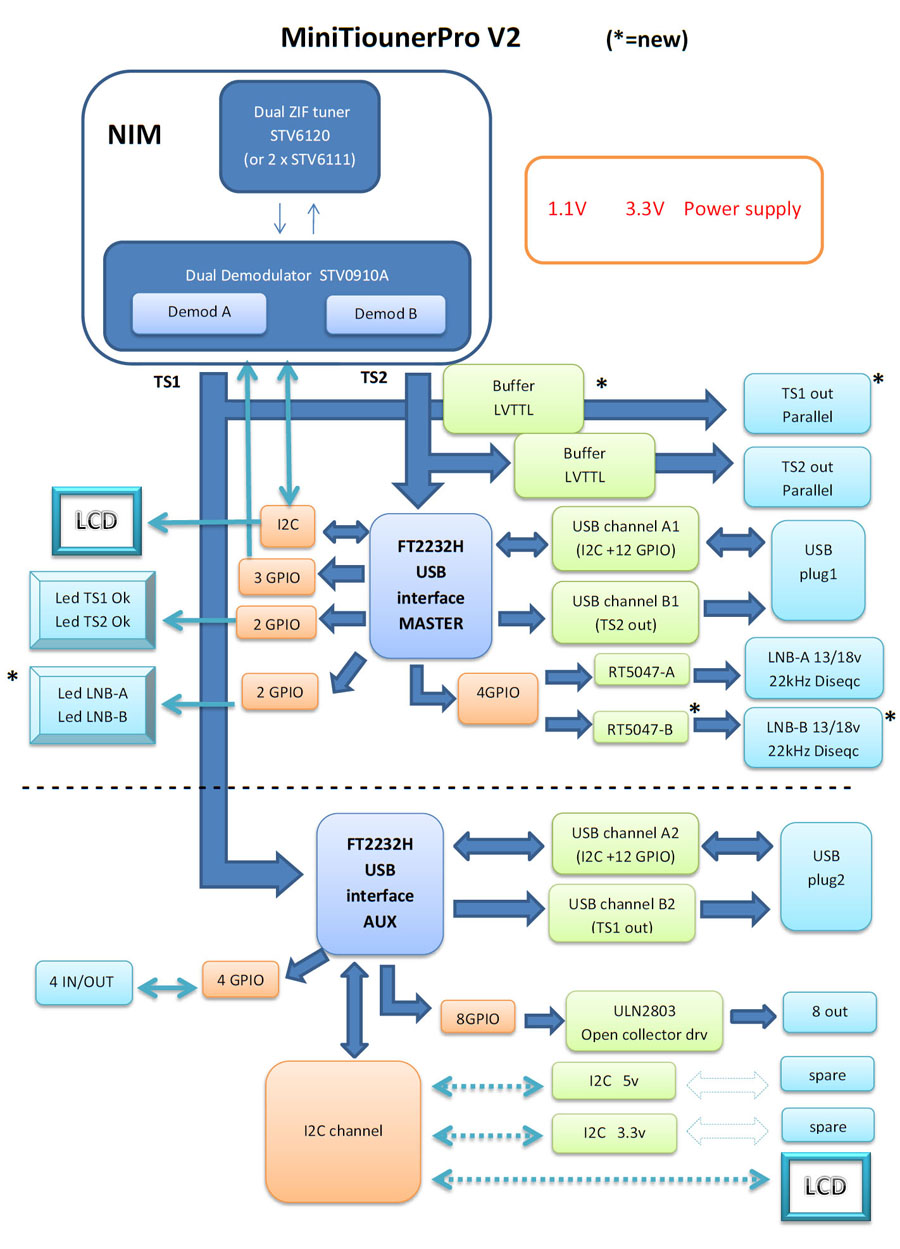

MiniTiounerPro V2 full synoptic_.jpg
MiniTiounerPro V2 full synoptic_.jpg (193.92 KiB) Viewed 35008 times

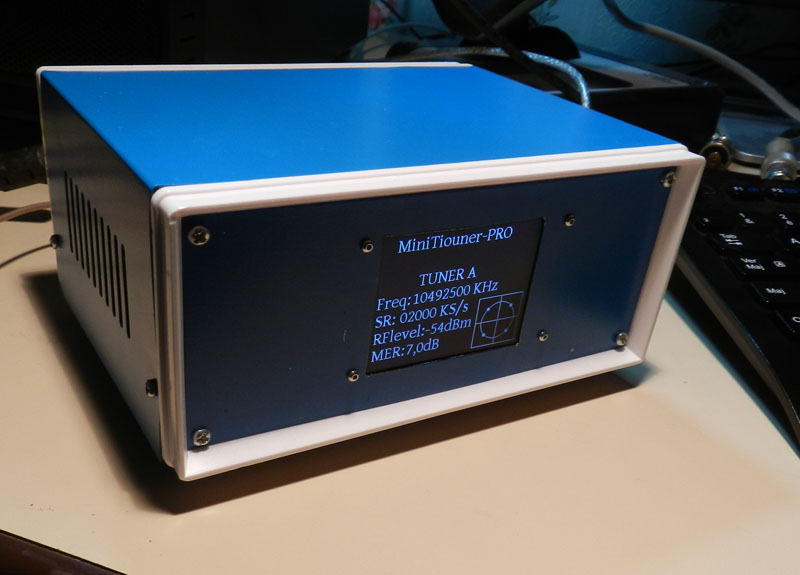

Boitier bleu avec MiniTiounerPro et LCD vue avant_.jpg
Boitier bleu avec MiniTiounerPro et LCD vue avant_.jpg (78.81 KiB) Viewed 35006 times



(Price is 99 euros)

Jean-Pierre F6DZP
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: MiniTiounerPro V2

Postby 2E0LGZ » Fri 26 Apr 2019 21:06

Hi Jean Pierre do you have to be a member of REF to order the PRO 2
Thanks
Gary 2E0LGZ
2E0LGZ

Posts: 6
Joined: 20 Apr 2019

Re: MiniTiounerPro V2

Postby F6DZP » Sun 28 Apr 2019 04:32

Hello Gary,

For the total amount including shipping to your country, ask the service: fournitures@r-e-f.org
For non members, you can send the amount directly using Paypal to the account of REF (ref-paypal@r-e-f.org) .
Make sure that Paypal message contains the subject of the payment and the return address for the MinitiounerPro V2

73
Jean-Pierre F6DZP
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: MiniTiounerPro V2

Postby 2E0LGZ » Sun 28 Apr 2019 19:09

Ok thank you Jean-Pierre i have sent a mail on friday and today so i await the reply
many thanks for your reply
Gary 2E0LGZ
2E0LGZ

Posts: 6
Joined: 20 Apr 2019

Re: MiniTiounerPro V2

Postby M5TXJ » Mon 29 Apr 2019 09:46

Hi Gary,

Don't hold your breath, I emailed and also sent a message from the webpage on Wednesday and have had no reply as yet.

73 Dave.
M5TXJ

Posts: 20
Joined: 03 Jul 2017

Re: MiniTiounerPro V2

Postby M5TXJ » Mon 29 Apr 2019 15:05

An update Gary,
Email to order received this afternoon, payment made but now have to wait until the end of May...
73 Dave.
M5TXJ

Posts: 20
Joined: 03 Jul 2017

Re: MiniTiounerPro V2

Postby 2E0LGZ » Mon 29 Apr 2019 21:38

Hi Dave yep i got the same email today a couple of weeks wait isnt bad i suppose considering its not a trully commercial product like radios amps etc so at least we’re on the list

73 Gary
2E0LGZ

Posts: 6
Joined: 20 Apr 2019

Re: MiniTiounerPro V2

Postby DL4OCH » Mon 20 May 2019 18:37

Hi all,

my MiniTiouner Pro V2 arrived today and works fine with one exeption:

There is no 22kHz on Tuner B, only on A. 14/18V works fine. Is this still a software-issue, or had I bad luck with mine from REF.

Also I would like to know, when the dedicated software for this MiniTiouner will be available...



vy73,
Wilm, DL4OCH
DL4OCH

Posts: 10
Joined: 30 Mar 2019

Re: MiniTiounerPro V2

Postby F6DZP » Mon 20 May 2019 20:32

Hello,

Yes I have not implemented yet the 22kHz for the B input. thank you to remind me , Sorry I forgot to do it. the V2 of MiniTiounerPro is very new and I had to time to finish the new options for it .
So yes it is a software issue (beta version), but not very complicated to fix.

When the MinitiouneV0.9 will be definitively finished (I hope I am very near the end) I will work on the software Dualtioune that allows to receive 2 stations. This software already exists but works only with DVB-S mode, not DVB-S2, so I will upgrade it with the final procedures used for Minitioune.

73
Jean-Pierre F6DZP
Last edited by F6DZP on Tue 21 May 2019 05:28, edited 1 time in total.
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: MiniTiounerPro V2

Postby DL4OCH » Mon 20 May 2019 20:36

Thanks Jean-Pierre for your reply.

So I can lean back, no faulty device, and can wait for the software to come.

I'm curious about the features for the new one. If you need Alpha, oder Beta-testers, we would be proud to help out.

Best Wishes,
vy73,
Wilm, DL4OCH
DL4OCH

Posts: 10
Joined: 30 Mar 2019
