How to use UDP with Tutioune

Postby F6DZP » Thu 13 Mar 2014 09:00

Hello,

You can enter in a new world using UDP.

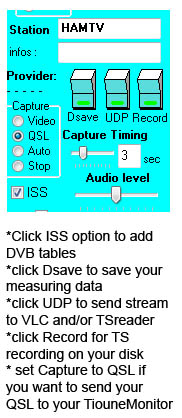

You just need to have a local network active on your PC and press the UDP button in Tutioune.
Tutioune1600 setup 3 buttons ON.jpg
Tutioune1600 setup 3 buttons ON.jpg (58.78 KiB) Viewed 7201 times


Now if some TS packets are received they are automatically sent to your local network. So you can open several software to decode the stream (VLC), to analyse the stream ( TSreaderlite...), to send in real time what your are receiving to your DVB modulator ( Digilite set in UDP mode, ...) so with this method when Tutioune receive a DATV station on 437 MHz, I can in real time send back this DATV stream on 1255MHz. So you have a repeater or transponder for free!

So I suppose Tutioune has its UDP button ON (I put it ON before I receive HamTV, but you can do when you want and stop it when you want)

How to set VLC for UDP receiving?

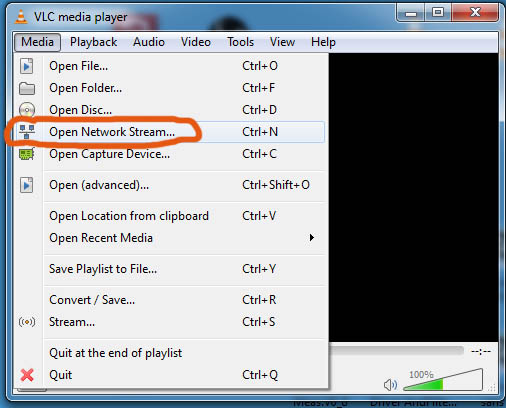

- first tell VLC to open a network stream :

VLC open network stream.jpg
VLC open network stream.jpg (70.28 KiB) Viewed 7201 times

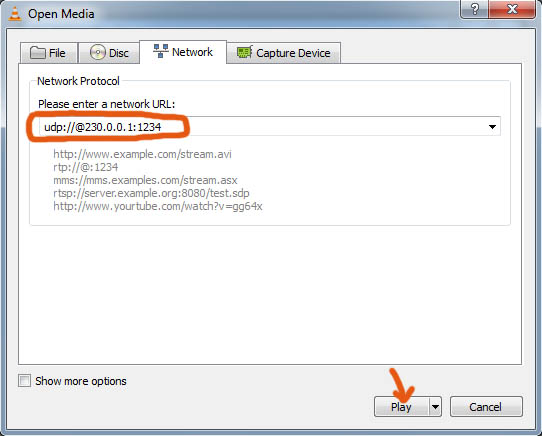

Now give to VLC the URL used by Tutiune to broadcast TS on UDP :

VLC giving UDP URL.jpg
VLC giving UDP URL.jpg (54.95 KiB) Viewed 7201 times

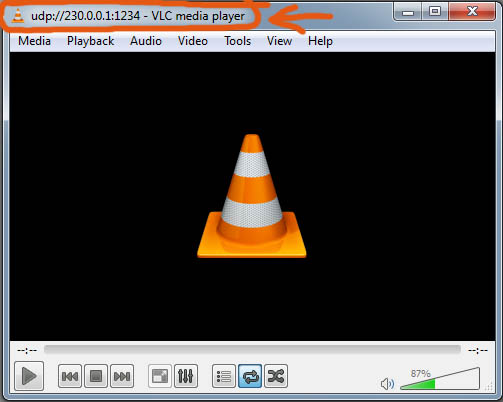

Now VLC is waiting for a UDP stream, we can see that on the top:

VLC waiting UDP stream from Tutioune.jpg
VLC waiting UDP stream from Tutioune.jpg (47.92 KiB) Viewed 7201 times

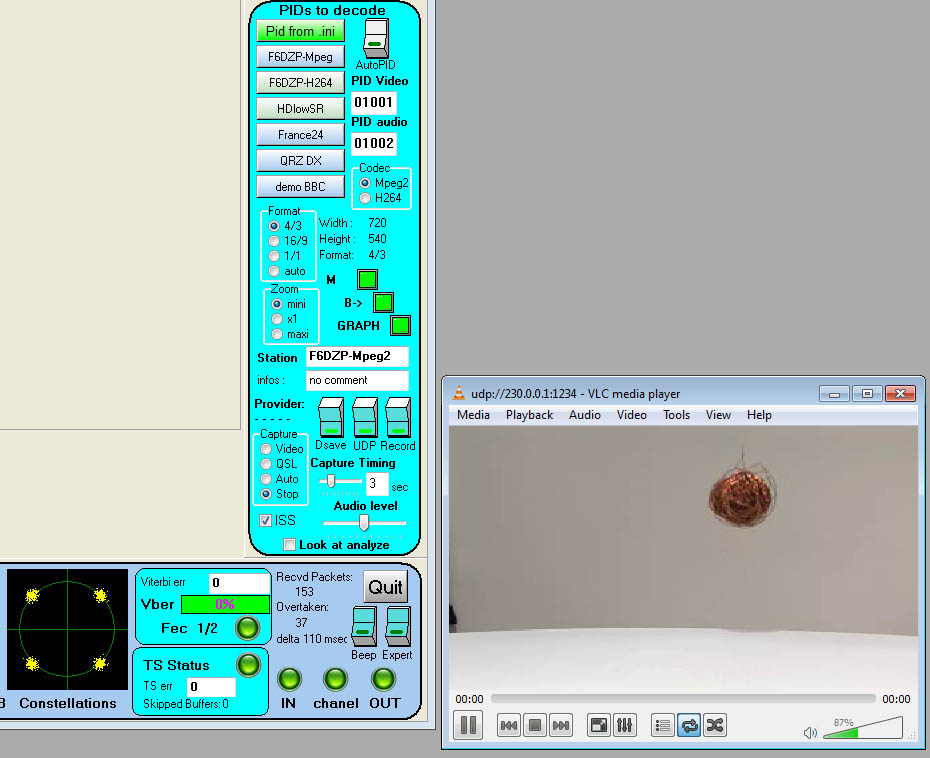

and VLC will show the video when it will receive the TS via UDP :

VLC receiving UDP stream from Tutioune.jpg
VLC receiving UDP stream from Tutioune.jpg (152.31 KiB) Viewed 7201 times


that all!

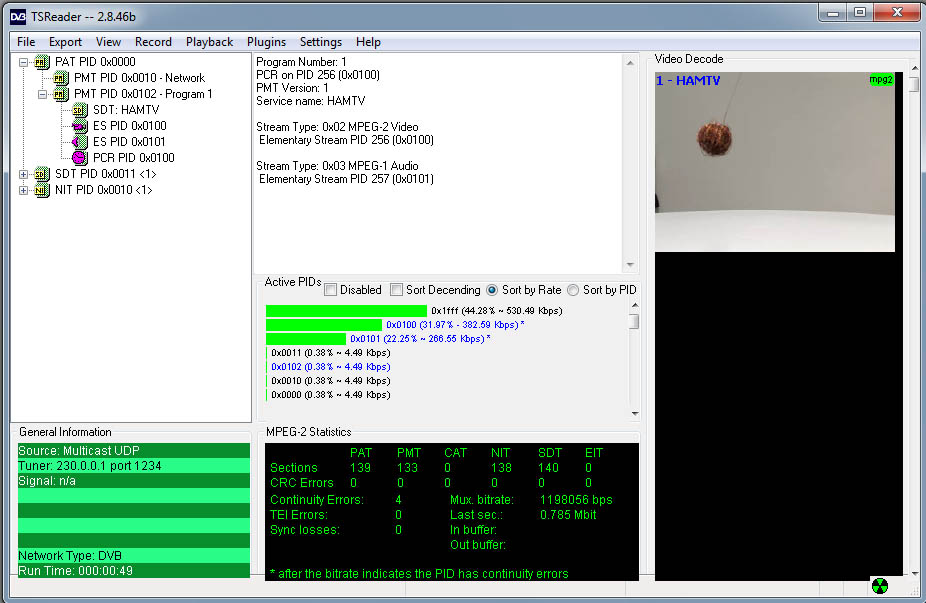

At SAME TIME you can also start TS reader in UDP mode to analyse the stream :


you will see that :

TSreader receiving UDP stream from Tutioune.jpg
TSreader receiving UDP stream from Tutioune.jpg (137.7 KiB) Viewed 7201 times



Jean Pierre F6DZP
