DATV DVB-S using very very low SR

Postby F6DZP » Mon 25 Aug 2014 07:57

Hello,

I m testing the use of very low Symbol Rate using DVB-S QPSK at 250 kS/s.

H264 coding can be made by a PC with a graph or RasberyPi using F5OEO solution

DVB-S Modulator used is Digilite or Dektec DTA107A

DVB-S receiver is Tutioune3200 using S2-3200 card or Tutioune1600 using S2-1600 card.

You can look at at a sample of what I am receiving here : http://www.vivadatv.org/images/test%20250kS%20extrait.html

Jean Pierre F6DZP
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: DATV DVB-S using very very low SR

Postby G4KLB » Mon 25 Aug 2014 14:01

Amazing results at 250 KS/s
Very well done, I have never seen such quality at so low a SR. :D
G4KLB

Posts: 32
Joined: 07 Jun 2011

Re: DATV DVB-S using very very low SR

Postby F6DZP » Tue 26 Aug 2014 10:47

Hello,

This morning I have been testing SR 125 kS/s

The result is more limited in quality but mostly I wanted to see if the TT S2-3200 card could receive this very very low Symbol Rate .
I can now say : yes!
Of course it remains work to enhance video quality and get a fastest lock but we see that it is doable.

settings for coding:
- 110,000 bps for video encoded in H264 - 320x240
- 32,000 bps for layer2 Mpeg1 encoding audio.
this is TSreader analyze:

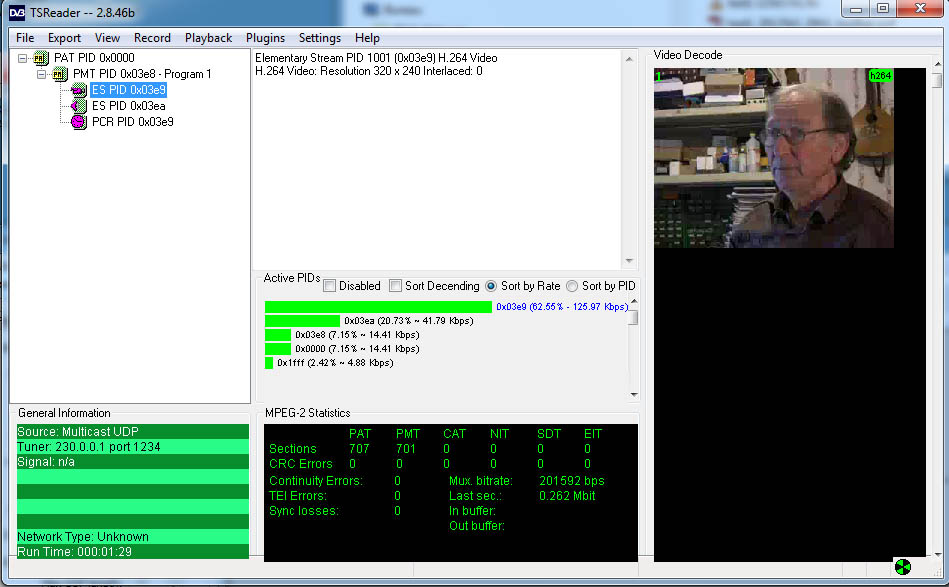

test 125KS TSreader analyze.jpg
test 125KS TSreader analyze.jpg (128.86 KiB) Viewed 77184 times


It is seen that the stuffing packets occupy only 2-3% of TS stream

The result in receipt by Tutioune3200 is here: [url] images/test1%20125kS%20Eng3.html [/ url]

Jean Pierre F6DZP
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: DATV DVB-S using very very low SR

Postby F6DZP » Tue 26 Aug 2014 12:07

using 400kS/s we can also work FULL HD 1920x1080

http://www.vivadatv.org/images/test1%20400kS%20HD1%20sample.html

I forgot to record the sound, but sound does exist (1000 kHz)

Jean Pierre F6DZP
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: DATV DVB-S using very very low SR

Postby W6HHC » Mon 8 Sep 2014 23:42

With assistance from Jean Pierre, I believe that I have been able to summarize the settings a stream data rates for Jean Pierre's recent testing of very low SR rates. The summary is located below in the table and organizes the H.264 data-rates used in these tests of DVB-S and the settings and resolution for those tests.


As F6DZP has pointed out, this next challenge for ham DATV is now to hack the software of commercial DTV receivers to allow them to receive very low SR rates (in order to achieve narrow bandwidths for DATV in crowded ham bands).

73...de Ken W6HHC
W6HHC

Posts: 14
Joined: 10 Jan 2014

Re: DATV DVB-S using very very low SR

Postby F6DZP » Sun 21 Sep 2014 08:35

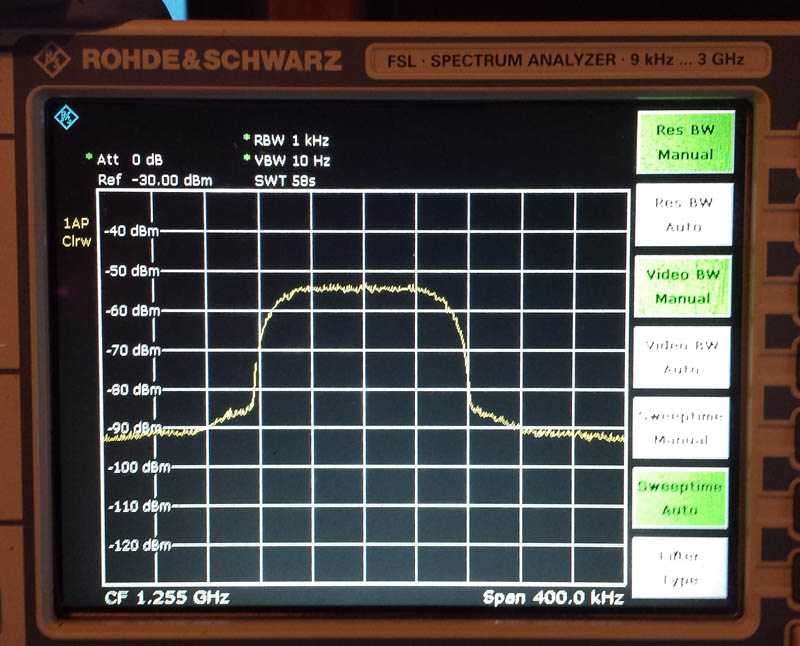

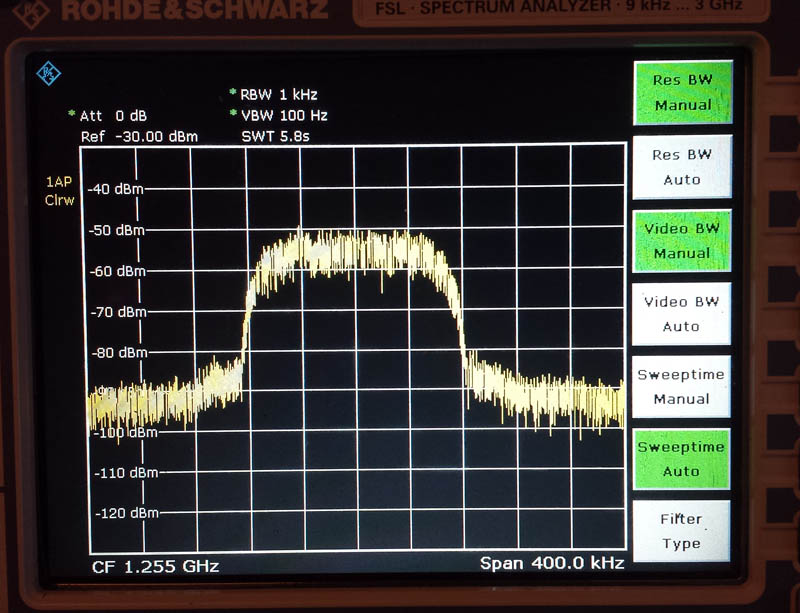

Using SR 125 kS/s, bandwidth is narrow:
SR125 kS_1s.jpg
SR125 kS_1s.jpg (115.23 KiB) Viewed 76565 times



using this bandwidth, I can send full HD video that is received exactly as it is sent, no pixel defect.

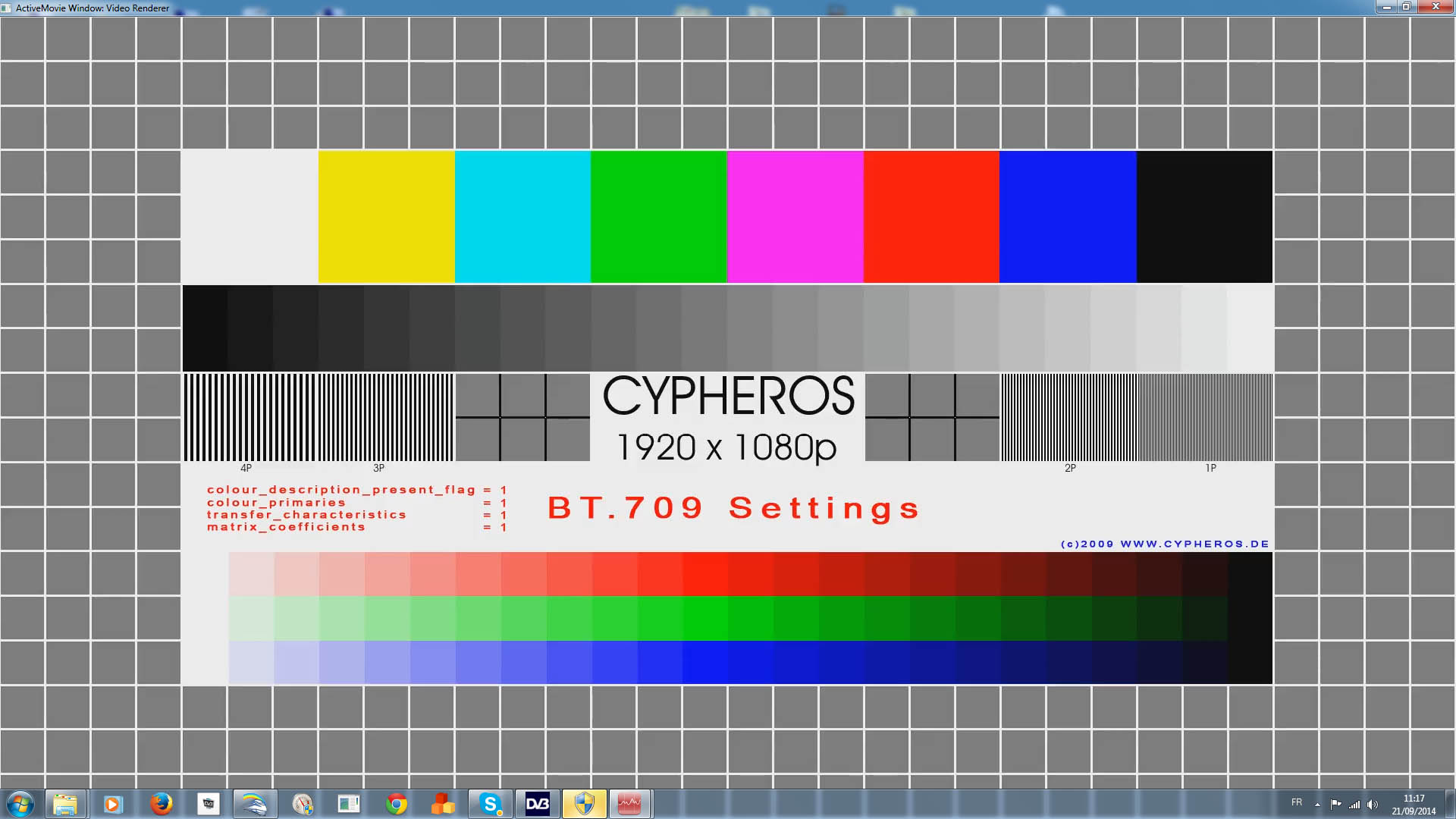

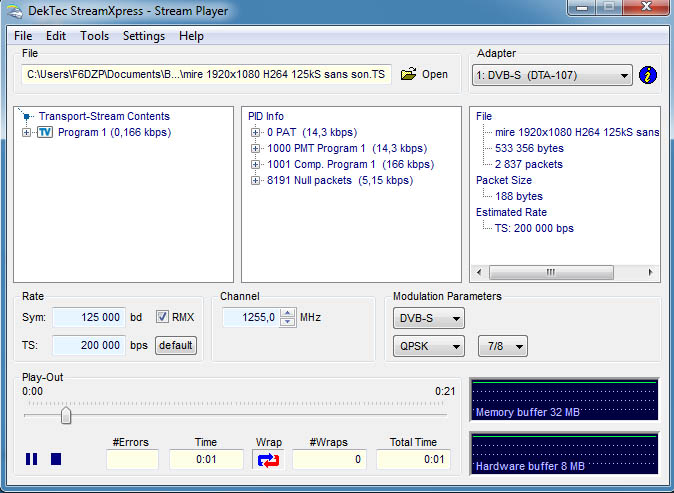

mire HD SR125kS modulated by DTA107.jpg
mire HD SR125kS modulated by DTA107.jpg (101.37 KiB) Viewed 76564 times


mire HD SR125kS capture.jpg
mire HD SR125kS capture.jpg (213.82 KiB) Viewed 76564 times


mire 1920x1080 H264 125kS no sound.zip
(402.92 KiB) Downloaded 4602 times


Jean Pierre F6DZP
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: DATV DVB-S using very very low SR

Postby DreuxPomerleau » Mon 28 Jun 2021 13:41

Ah bon! avec un tel débit, les résultats sont parfaits quand même. :o :o :o
Pour les adeptes de Onlyfans voici => comment créer un compte onlyfans
DreuxPomerleau

Posts: 7
Joined: 18 Jun 2021
