NPM software beta version for test

Postby F6DZP » Fri 19 Apr 2013 15:18

Hello,

Here you will find the package to use for Noise Power measurement.

Install NPM V0.2beta.zip S2-1600 version only ==>not for S2-3200, see next message.

You must use Technotrend PCI card S2-3200 or S2-1600. same software for both cards.
Put all files in one folder.
You must install the Saa7146a driver if it is not done.
You can set your own presets by editing the HVtioune.ini file

(don't take care of dB/dBm measures that say for the moment anything but truth)

I am presently working on it and changing many things.
a New version will come very soon.

73s
Jean Pierre F6DZP
Last edited by F6DZP on Sun 21 Apr 2013 05:01, edited 4 times in total.
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: NPM software beta version for test

Postby F6DZP » Sat 20 Apr 2013 04:33

Hello

This last version is supposed to work with both S2-3200 and S2-1600 cards:

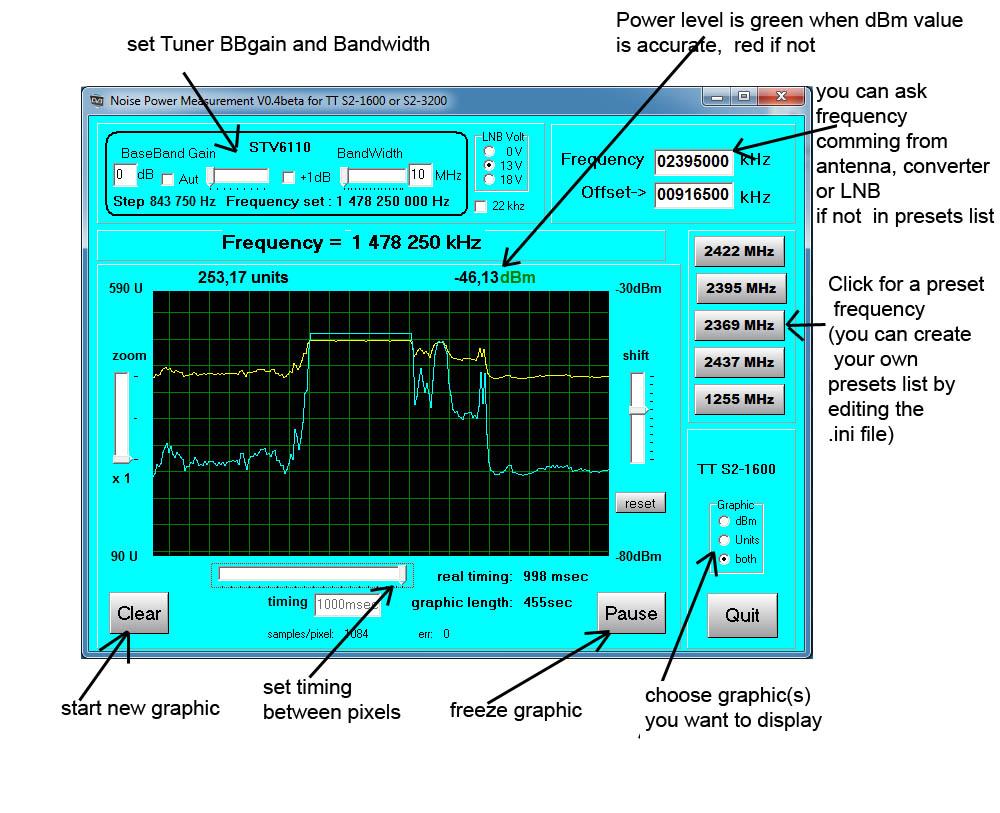

NPM V0.4beta.jpg
NPM V0.4beta.jpg (244.06 KiB) Viewed 78382 times


click here for download:

NPM V0.4beta is obsolete, see next message

You must use Technotrend PCI card S2-3200 or S2-1600. same software for both cards.

Put all files in one folder.

You must install the Saa7146a driver if it is not done.

You can set your own presets by editing the NTM.ini file


Jean Pierre F6DZP
Last edited by F6DZP on Tue 11 Jun 2013 13:37, edited 2 times in total.
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: NPM software beta version for test

Postby F6DZP » Tue 23 Apr 2013 08:37

Hello
last version.
just add dBm in Green and Red display( accurate or not) for TT S2-1600. ( worked already with S2-3200)

NPM V0.5beta 23 avril 2013 is now obsolete - see next message
Jean Pierre F6DZP
Last edited by F6DZP on Tue 11 Jun 2013 13:38, edited 1 time in total.
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: NPM software beta version for test

Postby F6DZP » Wed 24 Apr 2013 08:36

Hello,
version 0.6 with Zoom up to x16.
and really 300 sec max display.
(fix precedent version that have time display to divide by 2 to know real time display).

NPM V0.6beta 24 avril 2013.zip
(740.64 KiB) Downloaded 4700 times

Obsolete --> get the new version : it can be downloaded here :http://www.vivadatv.org/viewtopic.php?f=60&t=269

Jean Pierre F6DZP
Last edited by F6DZP on Sun 19 Jan 2014 09:24, edited 2 times in total.
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: NPM software beta version for test

Postby G8GKQ » Wed 18 Dec 2013 13:07

Hi

I have just downloaded NPM V0.6beta 24 avril 2013.zip and get a virus report from Avast (Win32:Evo-gen). Has anybody else seen this?

Thanks

Dave
G8GKQ
G8GKQ

Posts: 1
Joined: 17 Dec 2013

Re: NPM software beta version for test

Postby kb3pmr » Thu 19 Dec 2013 10:48

I just found that too. Was having trouble with my computer...not related to Npm and did a scan. This showed up in the vault. I have since moved to another computer to use for Hamtv and will check that machine this weekend.

bob

I ran the same test on the other computer Saturday with MS security essentials and it found no problems. I probably should have just went to explorer and scanned the computer for just that file but did not even think of that until now.
I guess the big question/s would be: Is it harmful, if so should it be removed, or is this file needed for NPM to work properly and how to get it out of quranteen?

Bob kb3pmr
Last edited by kb3pmr on Sun 22 Dec 2013 11:09, edited 1 time in total.
kb3pmr

Posts: 15
Joined: 19 Aug 2013
Location: Fredericksburg, Pa.

Re: NPM software beta version for test

Postby G6ZVE » Thu 19 Dec 2013 11:57

I just checked mine and i also have the same virus mentioned as you Dave, i also use avast

73's de Ian.
G6ZVE

Posts: 2
Joined: 26 Sep 2013

Re: NPM software beta version for test

Postby yonyos » Tue 31 Dec 2013 20:10

Hi in my computer error 32 bit ...its possible install with 64 bits system?
yonyos

Posts: 1
Joined: 15 Dec 2013

Re: NPM software beta version for test

Postby F6DZP » Thu 2 Jan 2014 21:41

yes. you can use it with win7 64 bits.( I have not tested yet but will do it asap)
You must install the SAA7146A 64 bits driver, that is not evident with Win7-64
solution is describe here:
http://www.vivadatv.org/viewtopic.php?f=72&t=255

Jean Pierre F6DZP
F6DZP

Posts: 1129
Joined: 24 Dec 2010

Re: NPM software beta version for test

Postby F6DZP » Sun 19 Jan 2014 09:20

a new version described here : http://www.vivadatv.org/viewtopic.php?f=67&t=270
can be downloaded here :http://www.vivadatv.org/viewtopic.php?f=60&t=269


Jean Pierre F6DZP
F6DZP

Posts: 1129
Joined: 24 Dec 2010
